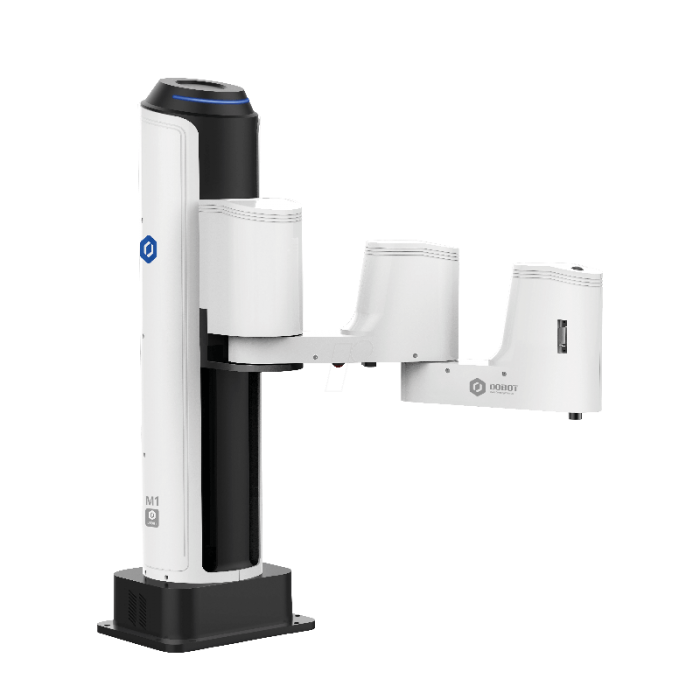

• DOBOT M1 Robot Manipulator

    The four-axis DOBOT M1 Scara industrial robot is fast and accurate. A load capacity of 1.5 kg is ideal for working with many components in a wide range of applications. A fully integrated control system minimizes even so little space. The thin design of the extension cord increases the range of its application, so it can also be used in confined spaces. Due to its design, the torsion resistant DOBOT M1 Scara robotic arm has a large working range with optimized footprint.

    One Robot Arm - Endless Options
    The DOBOT M1 Scara industrial robotic arm is more than a palletizer, selector or soldering robot. Thanks to various applications, a 3D printhead or any individual supporting device can also be attached in addition to a suction cup holder or a gripping lever for several automation options with the same device. Combine with grippers, suction cups, dispensers, soldering tools, optical image processing systems and more to automate a wide range of tasks.

    A speed of up to 2000 mm / s combined with an effective range of 400 mm and a repeat accuracy of 0.02 mm are ideal for a wide range of applications and provide you with many new features.

    Remarks:
    This device is intended for professional use and comes with a 12-month limited warranty for commercial customers only.

    Included in delivery:
    DOBOT M1 Scara robot inc. controller
    Power Supply
    Network cable
    Emergency stop

    Specifications:
    Range: 400 mm radius, 235 mm Z axis (250 mm spindle limited by program stops)
    Speed: up to - 2000 mm / s -180 ° / s (rotation axis), 1000 mm / s (Z axis)
    Input / Output Base: 2 emergency stops, 4 digital inputs, 2 digital outputs
    Input / output group: 4 digital inputs, 4 digital outputs, 2 analog-to-digital converters
    Communication: RS-232, Ethernet, Can-Bus RS-422

    Technical details
    Type roboterarm
    Design4-Achs-Roboter
    Payload 1.5
    Repeatability 0.02 mm
    Other
    Spectrum 0.400 m
    Implementation
    SoftwareDOBOTStudio M1 - Windows
    Dimensions
    width 230 mm
    depth634 mm
    Height 688 mm
    Weights
    Weight 20.0 kg
    Special offers
    Operating Temperature5 ... + 40 ° C
    Source of power
    Mains voltage input 100 - 240 VAC
    Mains frequency 50/60 Hz
    Manufacturer Specifications
    manufacturer DOBOT
    Serial number V-ART-00017
    Package weight25.0 kg
    RoHS compliant
    EAN / GTIN9900002498700

    Cost 4999 cu
